    Tidel Series 4 - Smart Safe

    Overview

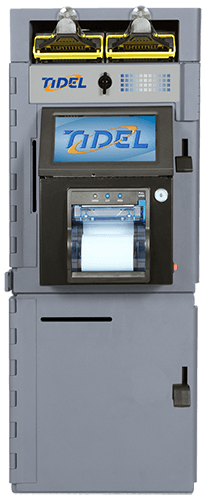

    Tidel Series 4 Smart Safe

    Designed with new levels of usability, convenience, and serviceability, the Tidel Series 4 smart safe helps retail organizations effectively manage their cash deposits while adapting to the ever-changing needs of their business. This powerful cash management safe sports a new, 7-inch color screen with enhanced touchscreen capability; navigating menus has never been easier.

    The Tidel Series 4 is a cash management solution available in a range of configurations. It can be setup as a compact stand-alone system, combined with a pedestal or paired with a storage vault or mailbox drop vault to maximize capacity. The Tidel Series 4 also supports the Tube Vend module, as a cash management solution for the in-store change fund.

    The Tidel Series 4 can accommodate two note storage cassettes that hold up to 1,200 notes per cassette in the standard version, or 2,250 notes per cassette in the XL version. The Series 4 also supports single and bulk note validators.

    Ask us about optional configurations
    VIEW PRODUCT SHEET (PDF)

    Specifications

    Series 4
    Total capacity Single note validator (Standard Cassette): 1,200 banknotes
    Bulk note validator (XL Cassette): 2,250 banknotes
    Dimensions (W x D x H) Single note validator: 311 mm x 584 mm x 457 mm (12.25" x 23" x 18")
    Bulk note validator: 311mm x 724 mm x 457 mm (12.25" x 28.5" x 18")
    Weight Single note validator: 43 kg (96 lbs)
    Bulk note validator: 55 kg (121 lbs)
    Certificates CE, UL
    Power supply 120 VCA - 220 VCA
    Rated frequency 60-50Hz
    Series 4 with storage vault
    Total capacity Single note validator (Standard Cassette): 1,200 banknotes
    Bulk note validator (XL Cassette): 2,250 banknotes
    Dimensions (W x D x H) Single note validator: 311 mm x 584 mm x 781 mm (12.25" x 23" x 30.75")
    Bulk note validator: 311mm x 724 mm x 781 mm (12.25" x 28.5" x 30.75")
    Weight Single note validator: 68 kg (149 lbs)
    Bulk note validator: 79 kg (174 lbs)
    Certificates CE, UL
    Power supply 120 VCA - 220 VCA
    Rated frequency 60-50Hz
    Series 4 with mailbox drop vault
    Total capacity Single note validator (Standard Cassette): 1,200 banknotes
    Bulk note validator (XL Cassette): 2,250 banknotes
    Dimensions (W x D x H) Single note validator: 311 mm x 584 mm x 781 mm (12.25" x 23" x 30.75")
    Bulk note validator: 311mm x 724 mm x 781 mm (12.25" x 28.5" x 30.75")
    Weight Single note validator: 70 kg (156 lbs)
    Bulk note validator: 82 kg (181 lbs)
    Certificates CE, UL
    Power supply 120 VCA - 220 VCA
    Rated frequency 60-50Hz
    Series 4 with pedestal
    Total capacity Single note validator (Standard Cassette): 1,200 banknotes
    Bulk note validator (XL Cassette): 2,250 banknotes
    Dimensions (W x D x H) Single note validator: 311 mm x 584 mm x 781 mm (12.25" x 23" x 30.75")
    Bulk note validator: 311mm x 724 mm x 781 mm (12.25" x 28.5" x 30.75")
    Weight Single note validator: 57 kg (126 lbs)
    Bulk note validator: 68 kg (151 lbs)
    Certificate CE, UL
    Power supply 120 VCA - 220 VCA
    Rated frequency 60-50Hz
