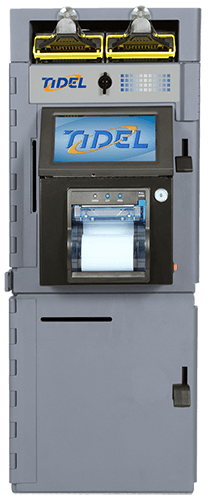

The Tidel Series 4e offers industry-leading expansion capabilities that retail organizations require from a day-to-day cash management solution.

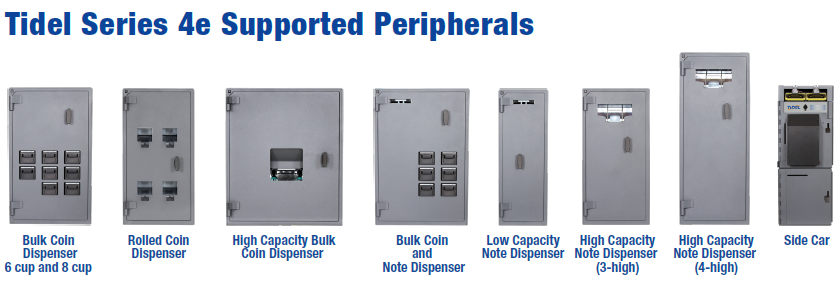

With its powerful range of supported peripherals, the 4e smart safe is a powerful cash management and banknote processing system. That means retailers can, with certain peripherals, dispense coins and notes, and scale their note deposit and validation capabilities with a single system.
Its range of peripherals makes the Tidel Series 4e the smart choice for retail organizations that require end-to-end cash management solutions to address multiple needs.
View tube vend product sheetSeries 4e | |
Total capacity | Single note validator (Standard Cassette): 1,200 banknotes Bulk note validator (XL Cassette): 2,250 banknotes |
Dimensions (W x D x H) | Single note validator: 311 mm x 584 mm x 457 mm (12.25" x 23" x 18") Bulk note validator: 311mm x 724 mm x 457 mm (12.25" x 28.5" x 18") |
Weight | Single note validator: 43 kg (96 lbs) Bulk note validator: 55 kg (121 lbs) |
Certification | CE, UL |
Feed direction | 120 VCA - 220 VCA |
Rated frequency | 60-50Hz |
Series 4e with storage vault | |
Total capacity | Single note validator (Standard Cassette): 1,200 banknotes Bulk note validator (XL Cassette): 2,250 banknotes |
Dimensions (W x D x H) | Single note validator: 311 mm x 584 mm x 781 mm (12.25" x 23" x 30.75") Bulk note validator: 311mm x 724 mm x 781 mm (12.25" x 28.5" x 30.75") |
Weight | Single note validator: 68 kg (149 lbs) Bulk note validator: 79 kg (174 lbs) |
Certification | CE, UL |
Feed direction | 120 VCA - 220 VCA |
Rated frequency | 60-50Hz |
Series 4e with mailbox drop vault | |
Total capacity | Single note validator (Standard Cassette): 1,200 banknotes Bulk note validator (XL Cassette): 2,250 banknotes |
Dimensions (W x D x H) | Single note validator: 311 mm x 584 mm x 781 mm (12.25" x 23" x 30.75") Bulk note validator: 311mm x 724 mm x 781 mm (12.25" x 28.5" x 30.75") |
Weight | Single note validator: 70 kg (156 lbs) Bulk note validator: 82 kg (181 lbs) |
Certification | CE, UL |
Feed direction | 120 VCA - 220 VCA |
Rated frequency | 60-50Hz |
Series 4e with pedestal | |
Total capacity | Single note validator (Standard Cassette): 1,200 banknotes Bulk note validator (XL Cassette): 2,250 banknotes |
Dimensions (W x D x H) | Single note validator: 311 mm x 584 mm x 781 mm (12.25" x 23" x 30.75") Bulk note validator: 311mm x 724 mm x 781 mm (12.25" x 28.5" x 30.75") |
Weight | Single note validator: 57 kg (126 lbs) Bulk note validator: 68 kg (151 lbs) |
Certification | CE, UL |
Feed direction | 120 VCA - 220 VCA |
Rated frequency | 60-50Hz |
