Overview

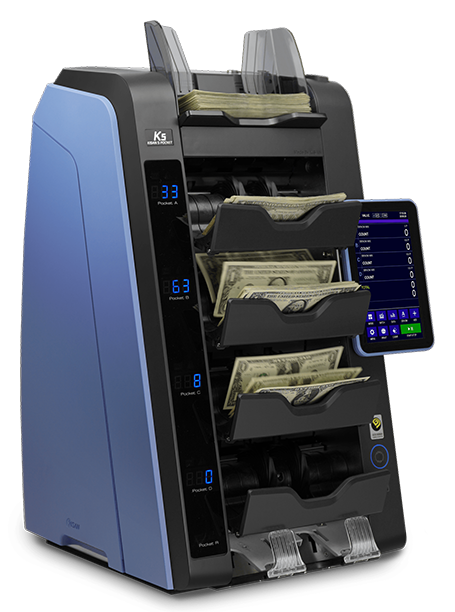

Kisan K5A Banknote Sorter
The K5A 5-pocket banknote sorter is an operating product with high efficiency and productivity and is tailor-made model for back office and CIT (Cash in Transit).
Space-saving model - small footprint, vertical design, high-speed - up to 1000 notes, single path face & orientation, auto currency support, and casino clearance program.
Specifications
| # of Pockets | 4+1 |
Hopper Capacity |
1000 |
Stacker Capacity |
200 |
Reject Capacity |
100 |
Normal Count |
1000 |
Value Count |
1000 |
Fitness Speed |
1000 |
S/N Speed |
1000 |
Dimension(W/H/D) |
338 X 575 X 415 mm |
Weight |
38kg |
| Functions | Multi Currency: 20 Auto/Mix(20), Face & Orientation, S/N (OCR), Fitness |
| S/N Reading | O |
| Fitness(F type) | O |
| Currency | Up to 48 |
| Sensor | Dual CIS, UV, MG (18ch), IR, US (21ch) |
| Connectivity/Interface | Serial Port x 3 LAN x 2 (Normal & Debug) USB x 1 OP Port |
| OS | Linux |
| Screen | External 7" Touch Display (800 x 480 Pixels) |
| Options & Special Features | High speed Sorting Small Footprint Rapid Face & Orient Network Solution (KBMS) |
