CDS-9L_Side-red





Overview

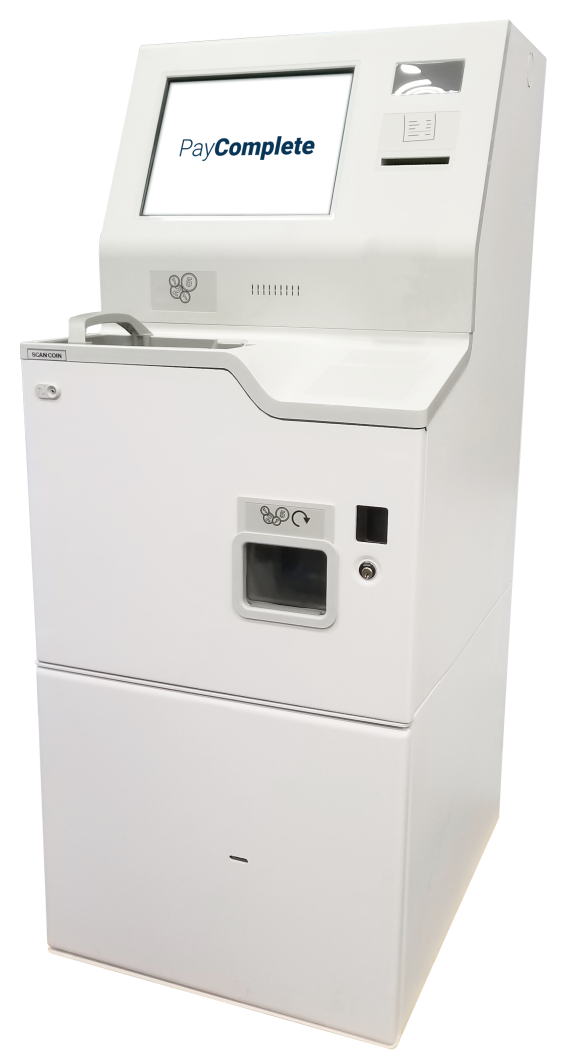

PayComplete CDS-9L Coin Kiosk

PayComplete created the CDS-9L for cost-conscious businesses that want the advantages of our award-winning CDS-9. The CDS-9L devices are front access and non-escrow, and they run on Connect on-Device software. Choose from non-sorting or sorting configurations, as well as the same broad range of flexible coin storage options as the CDS-9.

Features
  • Scalable, modular platform
  • Functions as a hybrid coin deposit/back-office automation solution
  • Operates on the Connect platform technology stack
  • Best-in-class bulk coin deposit, approved by ETSC
  • Intuitive interface, easy to use
  • Stores 14,000 to 60,000 coins (varies by currency and storage solution)
  • Multi-bag system available for six bags
  • Sort up to 8 denominations, storage options include sorting bags or boxes.
  • Includes the industry-leading Connect on-Device™ cash management machine operating system
  • Part of the PayComplete™ Connect platform
Benefits
  • Flexible software platform built to meet current and future demands
  • Products have dual hardware functionality and pay for themselves through consumer coin deposit; Hardware maintains its value and relevance year after year
  • Earn money via commission
  • Save money on external coin purchases
  • Boost in-store traffic and attract new customers by offering coin redemption service
  • Increase consumer loyalty

View CashComplete™ Connect

View Product Sheet (PDF)

Specifications

PayComplete CDS-9L

Counting speed

900 coins/minute

Coin diameter range

14 – 33 mm)

Coin thickness range

1.0 – 3.5 mm

Storage capacity, Non-sorting (based on EUR coin estimates)

Coin vault (standard and self-locking): up to 36,600 coins;
Coin box (dual for ADO): up to 28,800 (2 x 14,400) coins;
MBS (medium tube): up to 14,400 (6 x 2,400) coins;
MBS (large tube): up to 25,200 (6 x 4,200) coins

Storage capacity, Sorting (based on EUR coin estimates)

Boxes and bags: up to 33,600 (8 x 4,200) coins

Coin processing

ETSC-approved sensors meet ECB Article 6 (1) of Regulation (EC) No. 1338/2001.
Fitness sorting, value recognition, counterfeit detection.

Coin escrow

No

Size (WxDxH)

 22.8 x 28.4 x 55.5 in. (580 x 720 x 1,410 mm)

Height of coin deposit

 38.1 in. (967 mm)

Weight

 441 lb (200 kg)

Power

 100 – 264V, 50/60Hz, 110W

Software

 Connect on-Device

Printer

 Receipt printer, 80 mm thermal with presenter and retract

Display

 15-in. TFT color touchscreen

Optional peripherals

 Non-encrypted pin pad;
Card reader (motor, dip)
CashComplete™ Connect Basic Enterprise Retail

Real time dashboards with machine, cash and user status

x

x

x

Real time machine error notification

x

x

x

Basic reporting for machines, cash, users and transactions

x

x

x

Configure and modify machines, users and sites

x

x

x

Multi language and currency supported

x

x

x

Advanced reporting and analytics

x

x

Real time alerting via email and SMS

x

x

Centralized machine user management

x

x

Smart Groups™ for sites and machine users

x

x

Advanced user permissions

x

x

Advanced REST API for full read/write access to data

x

x

Support for selected third party devices

x

x

Retail cashier balancing including POS integration

x

Retail operations dashboard

x

Service Level Agreement

N/A

x

x
