    SDS-500 Series

    Overview

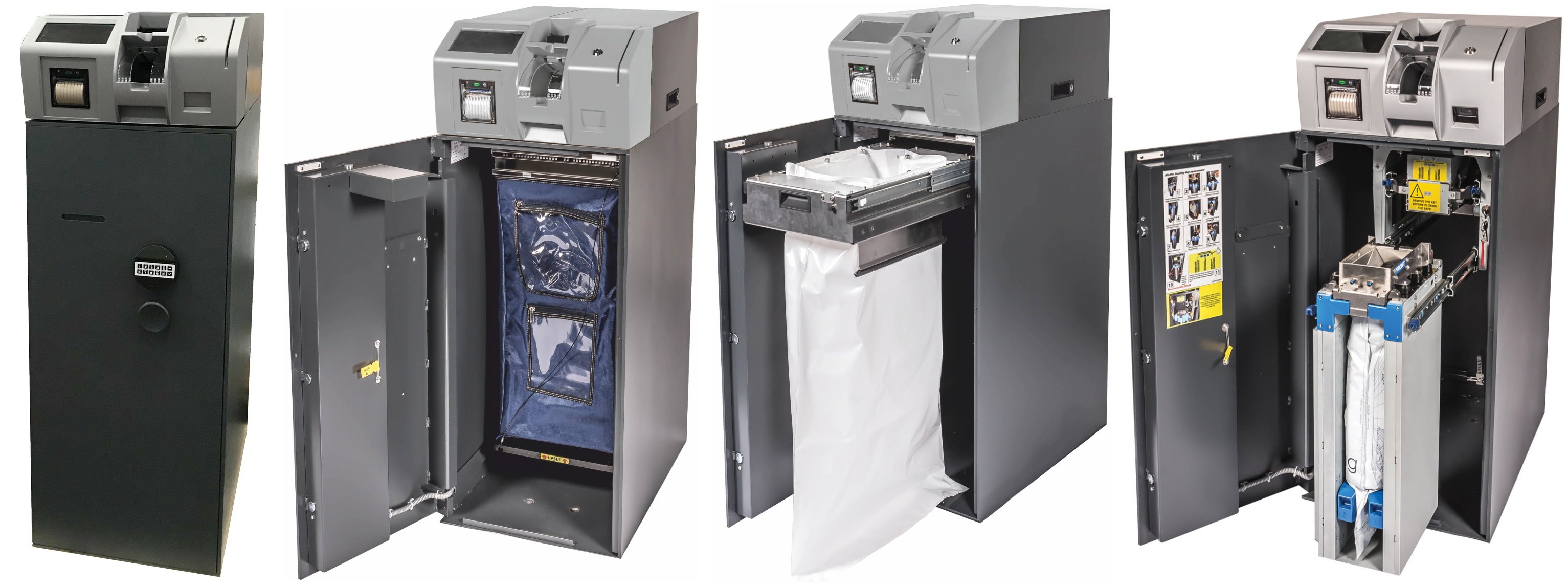

    CIMA SDM500S Intelligent Deposit/Smart Safe

    The SDM500 is a unique BANKNOTE deposit machine from CIMA.  Designed for high volume environments where back office bulk deposit of notes is essential, the SDM500 is available in 3 different deposit options: Heat seal free fall plastic bag (8,000 banknotes), free fall canvas bag (15,000 notes with shaker mechanism), self-sealing stacking plastic bag (4,000 banknotes). This volume flexibility allows clients to pick the most appropriate model based on the store’s note processing volumes. The SDM500 can process 6 banknotes per second from an input slot of 200 banknotes. Powered by CIMA’s own BV5000 validator ensures full image authenticity and compliance with all major global central banks.

    The SDM500 is ideally suited to medium to high cash volume environments. A complete note and coin deposit solution can be achieved when combined with our CDS801 coin deposit machine.  Operators can identify themselves through Dallas key, PIN code or barcode badge to gain access to the application software (CAOS) to perform their transactions. Transaction confirmations can be printed via the integrated thermal receipt printer.

    Ask us about optional configurations
    VIEW PRODUCT SHEET (PDF)

    Specifications

    SDM500S INTELLIGENT DEPOSIT/SMART SAFE
    Dimensions: 455mm (17.9in) W x 685mm (27.0in) D x 1250mm (40.5in) H
    Deposit Speed: Up to 6 notes / second
    Deposit Technology: Self-Seal Stacking Bag
    Seal Type: Seal at Top and Bottom
    Notes Capacity: 3000
    Bill Validator: CIMA BV5000; Compliant with US Federal Reserve Standards; Multi-currency capable
    Safe and Security: UL 291-24H
    Weight: 270kg (595.25 lbs.)
    Electrical: Voltage: 100V-240V AC; Frequency: 50Hz – 60Hz
