COIN AND NOTE RECYCLERS

    All Coin and Note Recyclers
    CASH@KIOSK_LEAD_IMAGE-featured-121x300

    Overview

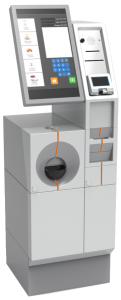

    CIMA CASH@KIOSK w/InLane300 DEPO

    CashKiosk InLane300 DEPO Cash Recycler

    CashKiosk InLane300 DEPO Cash Recycler is part of CIMA’s CASH@KIOSK range.  It is a self-service kiosk solution with an integrated note and coin recycling solution designed to be implemented in self-ordering and self-checkout environments.  It allows consumers to self-scan or self-select items to order/purchase and pay both notes and coins directly into the machine when paying by cash. The unit will count, store and dispense change back directly to the consumer.  Our CASH@KIOSK300 / DEPO is ideal for retail environments like Quick Service Restaurants (QSR) / Fast Food, convenience stores, and bill payment environments. CASH@KIOSK300 / DEPO features both recycling and surplus coin/note management.

     Benefits:

    • Automate the cash handling process at self-ordering or self-checkout
    • Remove staff from physically handling cash
    • Improve customer experience
    • Improve staff productivity – more time with customers and value-added store activities
    • Clean solution for cash handling in places where hygiene is important
    • Increase security and reconciliation to optimize business processes
    • Easy integration in any store format/checkout

    View C-LINK Software

    VIEW PRODUCT SHEET (PDF)

    Specifications

    CASH@KIOSK InLane300 Note & Coin Recycler
    Dimensions: 20.47in W x 21.65in D x  74.8in H
    InLane300 NOTE RECYCLER Technical Specifications
    Deposit Speed: Up to 2 notes / second
    Withdrawal Speed: Up to 3 notes / second
    Deposit Technology: Cassette + Canvas Bag
    Total Deposit Capacity: Up to 350 notes in Cassette (top compartment) – cassette not included; Up to 1,500 notes in Canvas Bag (safe area) – canvas bag not included; Up to 1,850 total deposit capacity
    Recycling Technology: Roll Storage Modules (RSM)
    Number of RSMs: 3 in top compartment
    Notes per RSM: Up to 100 notes*
    Total Recycling Capacity: Up to 300 notes*
    Connection Type: Ethernet or USB 1.0 Port
    Bill Validator: CIMA BV5000; Compliant with US Federal Reserve Standards; Multi-currency capable
    Safe and Security: Steel Strong Box (8mm)
    Electrical: Voltage 90 – 240V AC; Frequency 50 – 60Hz; Power input 600W
    InLane300 COIN RECYCLER Technical Specifications
    Coin Inlet Capacity: 20 coins
    Deposit Speed: Up to 10 coins / second
    Dispense Speed: Up to 6 coins / second
    Coin Outlet Capacity: 50 coins
    Deposit Technology: Hoppers
    Total Hoppers: 5
    Recycling Capacity: $0.01 – 1,500 coins; $0.05 – 450 coins; $0.10 – 900 coins; $0.25 – 550 coins; $1.00 – 235 coins
    Total Recycling Capacity: 3,635 coins
    Coin Overflow Coin Canvas Bag in safe area with capacity up to 10kg (22.05lbs)
    Peripherals: 27” touchscreen
      80mm thermal receipt printer
      Bar code reader
      PC embedded with Intel Atom E3940 quad-core, 1.8Ghz CPU, 4GB RAM, 32GB SSD HDD, MS Windows 10 IoT Enterprise 1809 LTSC
    OPTIONS: Customizable LED colors
      Customizable coin outlet design (square or round)
      Customizable device colors (black or grey)
