All Coin and Note Recyclers

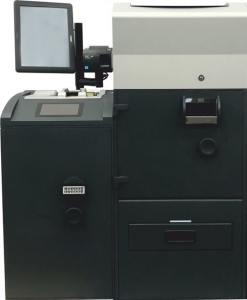

    DIAMANTE - AST9000 with CDS803


    CIMA Diamante Note & Coin Recycler

    DIAMANTE is CIMA’s high capacity back-office note and coin recycling solution for retailers or venues with higher note and coin requirements. Made up of our AST9000 note recycler + CDS803 coin recycler, the DIAMANTE solution has all the functionality you would expect from a complete high-capacity back-office cash recycling solution.  Driven by our flexible CAOS device operating system, retailers can customize how the system works specifically in their environments.  The AST9000 note recycler utilizes cassettes for recycling.  Each cassette can store up to 3,400 notes of a single denomination making it ideal for stores or environments where cash volumes are extremely high.  The AST9000 is highly flexible with the option of dual-denomination recycling cassettes.   Surplus notes are stored in a dedicated deposit-only cassette with can be emptied by the CIT operator.


    • Customize till floats and denomination mixes specifically for user types
    • Eliminate manual till preparation. Quick and automatic till dispense.
    • Fast and easy end-of-day cash-up process. Simply pour coins into the try and stack notes into the note feeder.
    • Reduce errors by automating the dispense and deposit process
    • Recycling reduces overall store cash requirements
    • Reduce shrink with quick reconciliation to third party applications

    View C-LINK Software



    DIAMANTE Note & Coin Recycler
    Dimensions: 895mm (35.22in) W x 1,021mm (40.20in) D x 1,100mm (43.30in) H
    AST9000 NOTE RECYCLER Technical Specifications
    Deposit Speed: Up to 10 notes / second
    Withdrawal Speed: Up to 10 notes / second
    Recycling Technology: Cash Box / Cassette
    Number of Cassettes: 5
    Number of Recycling Cassettes:  4 (possible to change)
    Number of Deposit Only Cassettes: 1 (possible to change)
    Notes per Single Recycling Cassettes:    3,400*
    Notes per Dual Recycling Cassettes:    1,800 / 450*
    Notes per Deposit Cassette:        2,800
    Connection Type: Ethernet or USB 2.0 Ports
    Bill Validator: Compliant with US Federal Reserve Standards; Multi-currency capable
    Safe and Security: UL 291-24H
    Weight: 430 kg (947.99 lbs.)
    Electrical: Voltage: 100V-240V AC; Frequency 50 – 60Hz
    CDS803 COIN RECYCLER Technical Specifications
    Deposit Speed: Up to 10 coins / second
    Dispense Speed: Up to 48 coins / second
    Deposit Technology: Hoppers
    Total Hoppers: 8
    Recycling Capacity: 18,000 coins
    Total Capacity: 22,000 coins
    Coin Validator: CLS; Compliant with US Federal Reserve Standards; Multi-currency capable
    Connection Type: USB Type B
    Safe and Security: 5 mm
    Electrical: Voltage: 100V-240V AC; Frequency: 50Hz – 60Hz
    Weight: 498.24 Lbs
