    Platino JR

    Overview

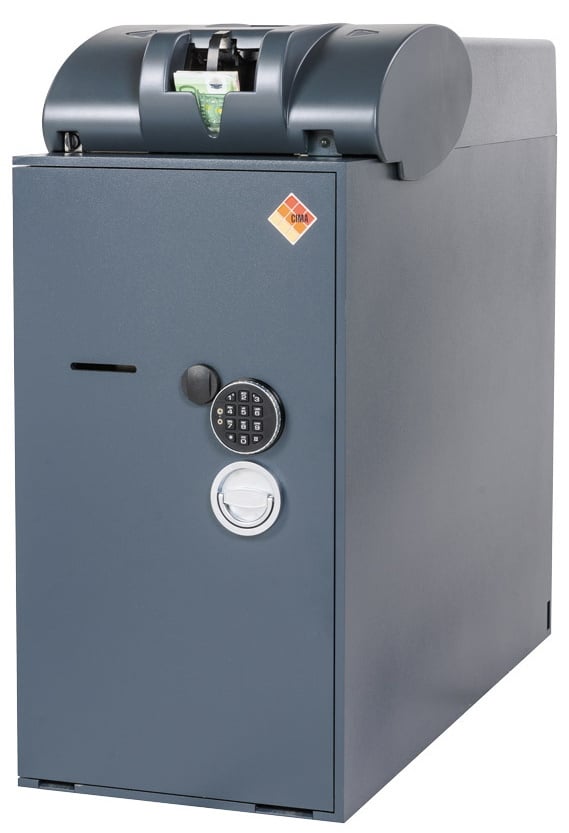

    CIMA Platino JR Note Recycler

    PLATINO JR Cash Recycler

    PLATINO JR is CIMA’s medium to high capacity back-office note recycling solution for retailers or venues with higher note requirements. Made up of our AST7008S note recycler, the PLATINO JR solution is affordable with all the functionality you would expect from a complete back-office cash recycling solution. Driven by our flexible CAOS device operating system, retailers can customize how the system works specifically in their environments. The AST7008S note recycler utilizes 8 x roll storage modules (RSM) for recycling.  Each RSM can hold up to 500 notes of a single denomination making it ideal for stores or environments where note volumes are high. The number of RSMs makes the configurability of the note recycler very flexible.  There are 8 x RSMs providing a total recycling capacity of up to 4,000 notes. The AST7008S has a unique self-sealing, stacking bag system for up to 3,000 surplus notes.  This eliminates the need for cassettes and allows CIT operators to pick up cash quickly without having to open cassettes in-store.



    Benefits

    • Customize till floats and denomination mixes specifically for user types
    • Fast and easy end-of-day cash-up process. Simply stack notes into the note feeder
    • Reduce errors by automating the dispense and deposit process
    • Recycling reduces overall store cash requirements
    • Reduce shrink with quick reconciliation to third party applications

    View C-LINK Software

    VIEW PRODUCT SHEET (PDF)

    Specifications

    PLATINO JR Note Recycler
    Dimensions: 440mm (17.32in) W x 1,055mm (41.54in) D x 957mm (37.68in) H (Plinth to raise height optional)
    AST7008S NOTE RECYCLER Technical Specifications
    Deposit Speed: Up to 6 notes / second
    Withdrawal Speed: Up to 6 notes / second
    Recycling Technology: Roll Storage Drums (RSM)
    Deposit Technology: Heat Sealing Stacking Bag
    Number of RSMs: 8
    Notes per RSM: Up to 500 notes*
    Total Recycling Capacity: Up to 4,000 notes*
    Total Deposit Capacity: Up to 3,000 notes
    Connection Type: Ethernet or RS232 Serial Ports or USB 1.0 Port
    Bill Validator: CIMA BV5000; Compliant with US Federal Reserve Standards; Multi-currency capable
    Safe and Security: 12 mm (UL 291), CEN L, CEN III, CEN IV
    Weight: From 250kg (551.16 lbs.) to 450kg (992.08 lbs.) according to the configuration
    Electrical: Voltage 90 – 240V AC; Frequency 50 – 60Hz; Power input 600W
