All Coin and Note Recyclers
    PLATINO - AST7008+CDS-803

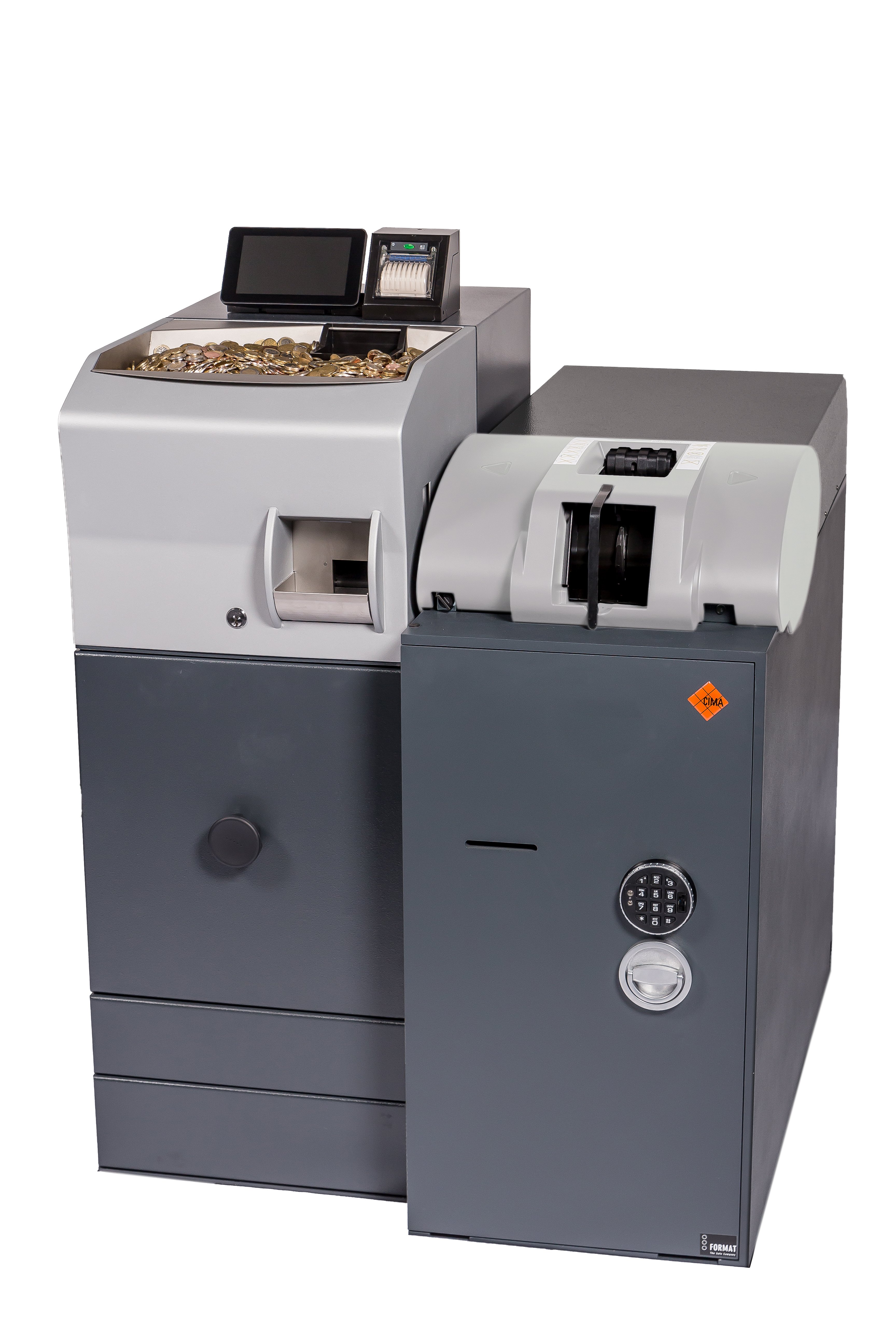

    CIMA Platino Note & Coin Recycler

    PLATINO is CIMA’s medium to high capacity back-office note and coin recycling solution for retailers or venues with higher note and lower coin requirements. Made up of our AST7008S note recycler + CDS803 coin recycler, the PLATINO solution is affordable with all the functionality you would expect from a complete back-office cash recycling solution. Driven by our flexible CAOS device operating system, retailers can customize how the system works specifically in their environments. The AST7008S note recycler utilizes 8 x roll storage modules (RSM) for recycling.  Each RSM can hold up to 500 notes of a single denomination making it ideal for stores or environments where note and coin volumes are high.  The number of RSMs makes the configurability of the note recycler very flexible.  There are 8 x RSMs providing a total recycling capacity of up to 4,000 notes. The AST7008S has a unique self-sealing stacking bag system for up to 3,000 surplus notes.  This eliminates the need for cassettes and allows CIT operators to pick up cash quickly without having to open cassettes in-store.


    • Customize till floats and denomination mixes specifically for user types
    • Eliminate manual till preparation. Quick and automatic till dispense.
    • Fast and easy end-of-day cash-up process. Simply pour coins into the try and stack notes into the note feeder.
    • Reduce errors by automating the dispense and deposit process
    • Recycling reduces overall store cash requirements
    • Reduce shrink with quick reconciliation to third party applications

    View C-LINK Software



    PLATINO Note & Coin Recycler
    Dimensions: 880mm (34.64in) W x 1,055mm (41.54in) D x 1,100mm (43.30in) H
    AST7008S NOTE RECYCLER Technical Specifications
    Deposit Speed: Up to 6 notes / second
    Withdrawal Speed: Up to 6 notes / second
    Recycling Technology: Roll Storage Modules (RSM)
    Deposit Technology: Heat Sealing Stacking Bag
    Number of RSMs: 8
    Notes per RSM: Up to 500 notes*
    Total Recycling Capacity: Up to 4,000 notes*
    Total Deposit Capacity: Up to 3,000 notes
    Connection Type: Ethernet or RS232 Serial Ports or USB 1.0 Port
    Bill Validator: CIMA BV5000; Compliant with US Federal Reserve Standards; Multi-currency capable
    Safe and Security: 12 mm (UL 291), CEN L, CEN III, CEN IV
    Weight: 992.08 Lbs
    Electrical: Voltage 90 – 240V AC; Frequency 50 – 60Hz; Power input 600W
    CDS803 – COIN RECYCLER Technical Specifications
    Deposit Speed: Up to 10 coins / second
    Dispense Speed: Up to 48 coins / second
    Deposit Technology: Hoppers
    Total Hoppers: 8
    Recycling Capacity: 18,000 coins
    Total Capacity: 22,000 coins
    Coin Validator: CLS; Compliant with US Federal Reserve Standards; Multi-currency capable
    Connection Type: USB Type B
    Safe and Security: 5 mm
    Electrical: Voltage: 100V-240V AC; Frequency: 50Hz – 60Hz
    Weight: 498.24 Lbs
