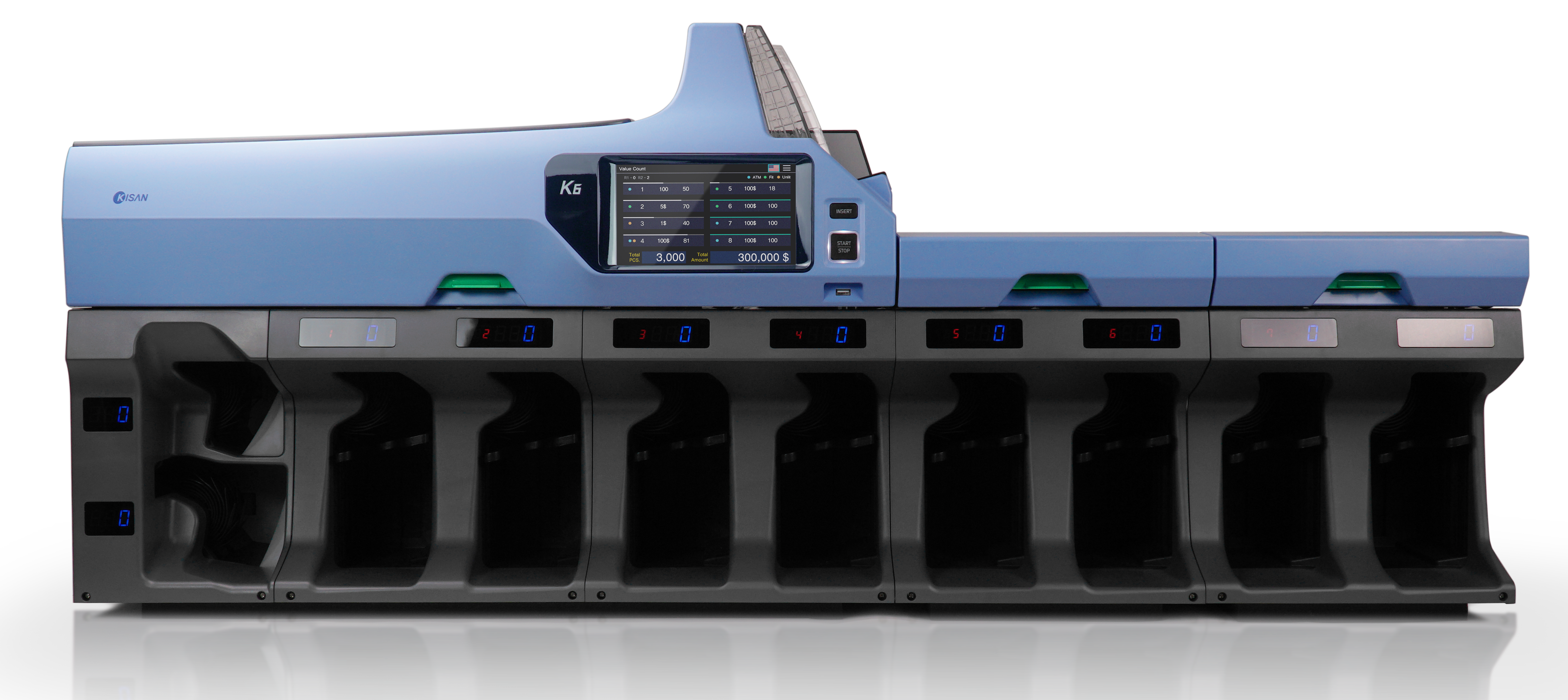

Kisan K6 Modular Banknote Sorter
The Kisan K6 banknote sorter is a premium dual pocket expandable module and flexible pocket assignment system. Maximized cash handling productivity with easy configuration for diverse sorting and pocket accessibility. Dual pocket with expandable modules - maximum 12 pockets. Flexible and easy pocket assignment, reject pocket in the same location with other pockets. Open pocket design, simple path, reliable push mechanism, multi/auto currency, and pocket capacity maximum 500 (for ATM cassette).
Specifications
| # of Pockets | Main 4+2, Ext. 2-12 (6 Module) |
Hopper Capacity |
1000 |
Stacker Capacity |
500 |
Reject Capacity |
Reject 1-100, Reject 2-200 |
Normal Count |
1000 |
Value Count |
1000 |
Fitness Speed |
1000 |
S/N Speed |
1000 |
Dimension(W/H/D) |
Main 731 X 534 X 392 mm Ext. (2P) 276 X 348 X 392 mm |
Weight |
Main 55kg, Ext 10kg |
| Functions | Multi Currency: 20 Auto, Mix, Batch Card, Face & Orientation, S/N (OCR), Fitness |
| S/N Reading | O |
| Fitness(F type) | O |
| Currency | 12 |
| Sensor | Dual CIS, UV, MG (18ch), IR, US |
| Connectivity/Interface | Serial Port x 4 LAN x 2 (Normal & Debug) USB x 1 |
| OS | Linux |
| Screen | 7" Touch Display (800 x 480 Pixels) |
| Options & Special Features | Dual Pocket Extendable Structure Interactive Pocket Structure Batch Card support Support External Data Screen |
